Solar SCADA / RMS · plant visibility
Solar SCADA and RMS for a clearer operating picture.
Enercog organises agreed plant data, alarms, reporting and operating review for EPCs, IPPs and asset owners. The page starts with visibility; control authority, point lists, interfaces and acceptance evidence remain project-defined.
A platform-fit review begins with the plant stage, equipment, signals, operating roles and handover questions.
Turn fragmented plant data into an operating conversation.
SCADA/RMS is useful when the signal path, alarm meaning and handover evidence are clear enough for people to act on.
Acquire
Bring agreed inverter, meter, weather, storage and plant signals into the defined edge boundary.
Understand
Apply timestamps, quality states, alarm rules and role-specific views to make data reviewable.
Coordinate
Show where SCADA/RMS ends and where PPC, EMS, PCS, BMS or OEM protection remains authoritative.
Hand over
Connect configured views, reports, test records and as-built evidence to the operating team.

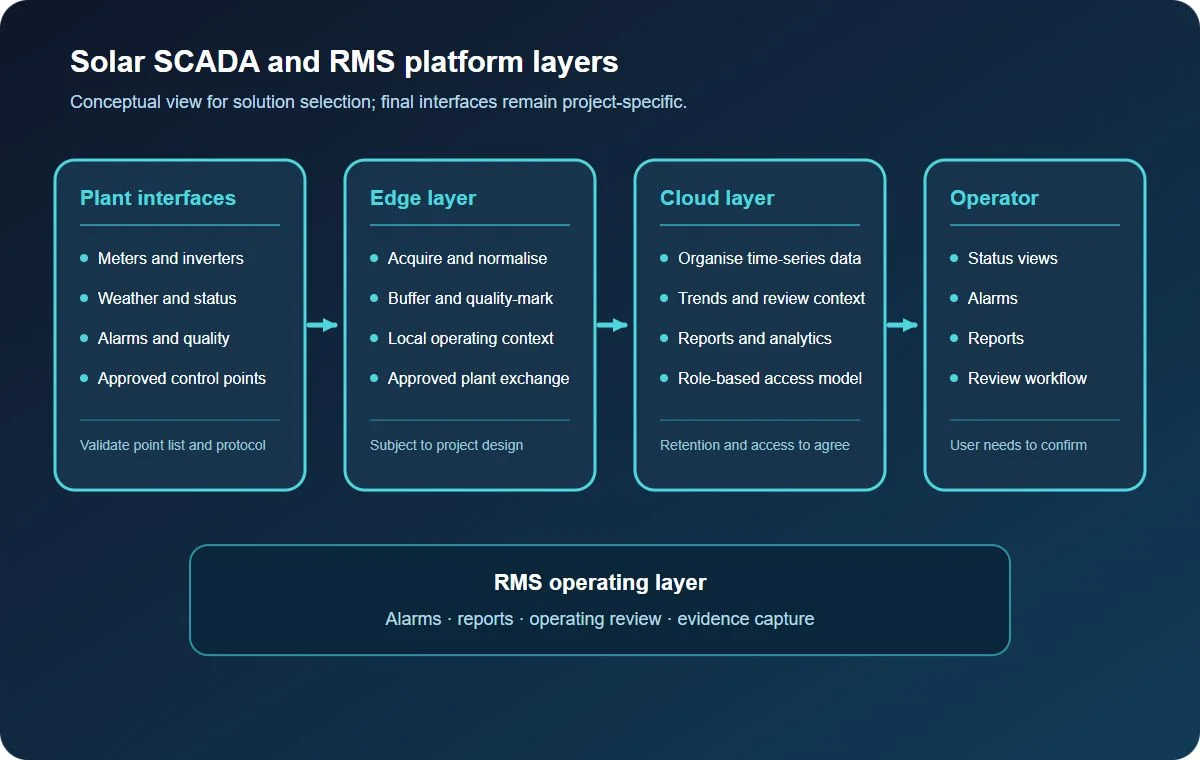

From field signals to an operating decision.
The architecture explains the route without pretending that every plant has the same equipment, protocol or command model.
- 1Field and plant signalsInverters, meters, weather, storage and plant I/O enter through agreed interfaces.
- 2Edge and SCADA/RMS layerData is normalised, contextualised, alarmed, stored and presented to the right operating roles.
- 3Review, reporting and control boundaryReports and review connect to the project’s PPC, EMS and OEM responsibilities without collapsing them.
Start with the operating situation, not a generic feature list.
The right scope depends on the plant stage, existing systems and the people who need to review or act on the data.
Plan the operating architecture
Set the monitoring boundary, point-list ownership, user roles, alarm responsibilities and handover evidence before equipment and network decisions harden.
Assess an existing setup
Review the installed controller, inverter, meter, protocol, firmware, network path and tested functions before treating an overlay or integration route as supported.
Review multiple sites
Standardise views, reporting and escalation where equipment protocols, access permissions, data quality and operating responsibilities allow it.
Compare platform fit
Use the plant information and operating requirements to compare suppliers before the detailed technical scope is finalised.
Bring the documents that make the boundary testable.
A platform-fit discussion is more useful when the source systems, operating needs and acceptance responsibilities are visible from the start.
Plant and system inputs
Plant capacity and stage, single-line diagram, equipment list, inverter and meter details, controllers, protocols, firmware, network paths and existing monitoring.
People and operating needs
Required dashboards, alarms, reports, user access, escalation routines, time synchronisation, retention expectations and the roles responsible for review.
Delivery and acceptance
Point-list ownership, interface responsibilities, cybersecurity requirements, FAT/SAT criteria, evidence format, defect closure, support scope and handover location.
For Indian projects, confirm current grid and regulatory requirements against the applicable official CERC material and named state-utility documents; a source link does not replace project applicability review.
Visibility is valuable when every adjacent layer has a clear job.
Enercog’s monitoring story connects to the wider site architecture without collapsing monitoring, control, storage dispatch or local protection into one promise.
Acquire and review
Organise agreed data, alarms, trends, reports, roles and operating evidence within the named project boundary.
Coordinate plant control
Own authorised plant-level electrical control where configured; see the Solar SCADA/PPC scope guide for command boundaries.
Connect the operating layers

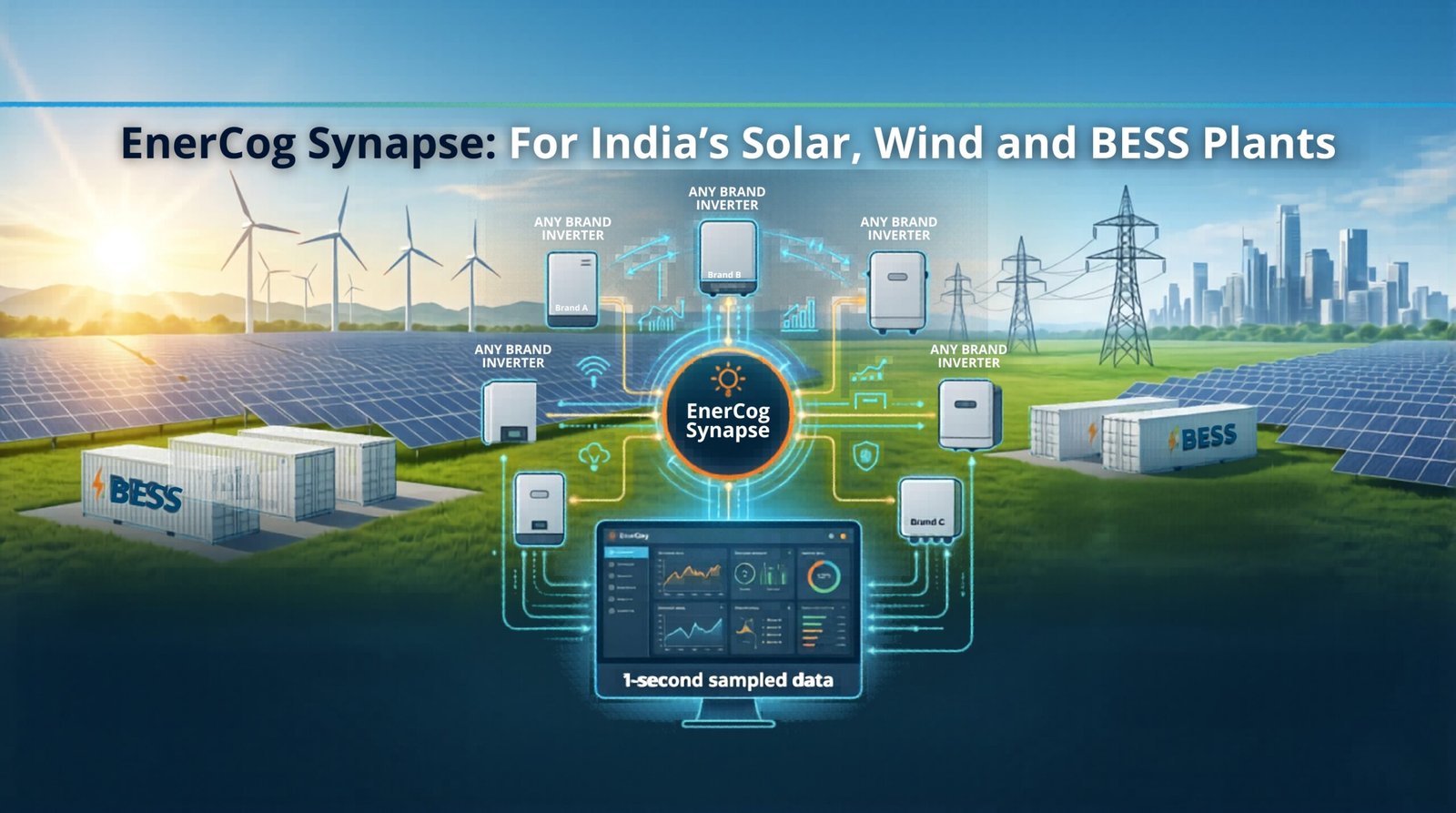

Synapse Edge and Clarity UI represent related acquisition and presentation layers; exact interfaces remain project-defined.
Keep limits authoritative
EMS, PCS, BMS, inverter and OEM protection responsibilities remain explicit for schedules, storage constraints, inner loops, interlocks and local protection.
Good monitoring design makes the unknowns visible.
What is the difference between Solar SCADA and RMS?
SCADA is the broader supervisory acquisition, visualisation, alarm and control interface, while RMS commonly describes the remote monitoring and reporting operating layer. A project may combine them, but the point list, permissions, control authority and responsibilities still need to be defined.
Who typically needs a Solar SCADA/RMS platform?
EPCs, IPPs, asset owners and operating teams may need one for a new plant, retrofit or portfolio when they must organise plant data, alarms, reports and operating review across agreed systems.
Can an existing plant setup remain in place?
It may, when the existing equipment, access method, point list, firmware, protocol functions, network path and project responsibilities support an overlay or integration path. Confirm tested behaviour before treating the arrangement as supported.
What should a buyer clarify before selecting a supplier?
Clarify the asset and point list, user roles, alarms, reports, retention, interface responsibilities, control authority, communications-loss behaviour, cybersecurity scope, FAT/SAT criteria, support and handover evidence.
When should PPC scope be reviewed?
Review PPC when the project requires plant-level active/reactive power, voltage, power-factor, ramp, curtailment or zero-export behaviour. Use the separate PPC page to keep command authority explicit.
What information helps assess a project?
Share the plant capacity and stage, equipment and single-line diagram, existing controllers and protocols, network details, required views and reports, project requirements and available acceptance records.
Bring the plant question. We will map the operating boundary.
Share the plant stage, capacity, location, existing monitoring, OEMs, required reports and the control questions that need an engineering answer.
