Grid Compliance & Reverse Power Mitigation
Zero Export Controller Solar India: Commercial & Industrial Protection
High-speed closed-loop active power control for C&I rooftop and captive solar PV plants under CEA Technical Standards and State DISCOM regulations. Prevents grid backfeeding at the Point of Common Coupling within configured inverter operating envelopes.
Protocol-dependent response time (sub-second over RS-485 Modbus RTU, sub-500ms over Modbus TCP Ethernet) with a 5% safe import buffer at the PCC meter. Part of Enercog’s plant-wide Solar Power Plant Controller (PPC) architecture.

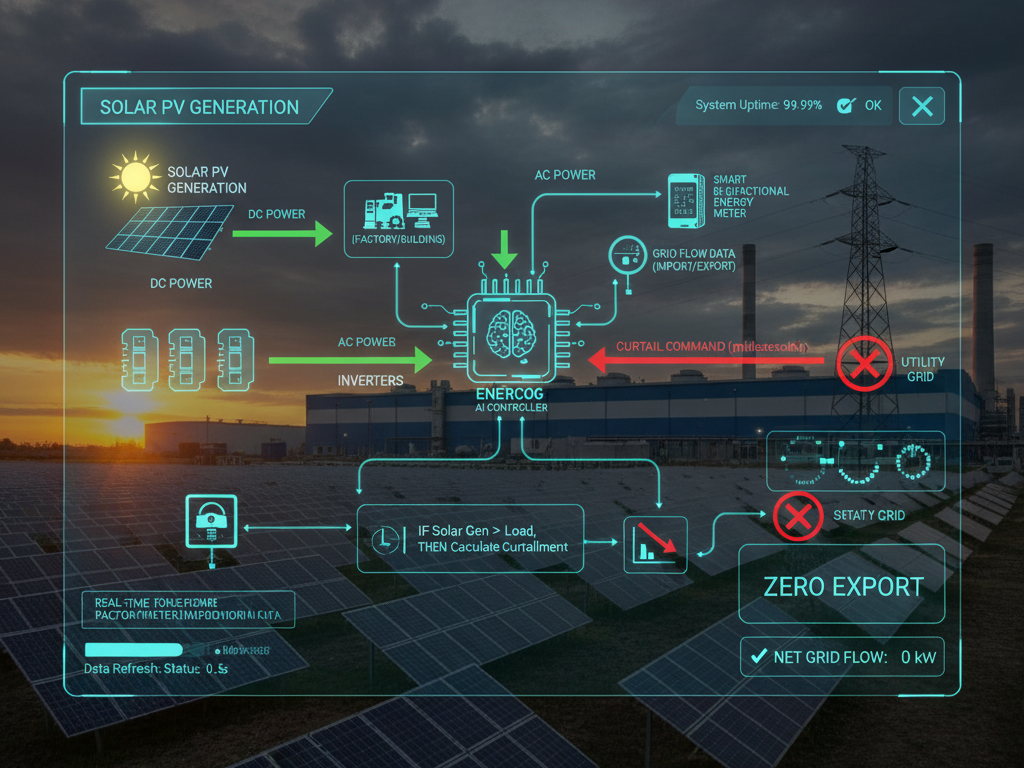

Closed-Loop Zero-Export Telemetry Architecture
Deterministic Closed-Loop Control: Sub-Second RS-485 & Sub-500ms Modbus TCP with a 5% PCC Import Safety Cushion.
Enterprise Capabilities
6 Essential Control Modes for Zero Export Controller Solar India Compliance
Engineered to prevent DISCOM reverse power penalties, mitigate transformer backfeeding, and protect diesel generators during utility outages within configured plant boundaries.
Dynamic Active Power Regulation
Continuous closed-loop setpoint modulation matching instantaneous solar generation to facility load demand:
- Automated multi-channel active power capping
- Smooth ramp rate regulation protecting inverter warranties
- Rapid response to heavy industrial load swings
PCC Safety Import Cushion
Calibrated baseline import margin at the Point of Common Coupling to prevent export during sudden load drops:
- Absorbs sudden motor shutoffs, compressor trips, and crane drops
- Prevents instantaneous generation from crossing zero into the grid
- Mitigates reverse power relay tripping on utility meters
DG-PV Hybrid Synchronization
Seamless transition to diesel generator protection mode during utility grid outages:
- Enforces Minimum Generator Loading to protect alternator coils
- Prevents reverse power motoring and engine carbonization
- Delivers substantial diesel fuel savings during daytime outages
Multi-OEM Fleet Coordination
Unified supervisory control across mixed inverter manufacturers, models, and orientations:
- Proportional or staged curtailment across heterogeneous strings
- Simultaneous Modbus RTU / TCP multi-bus integration
- Compatible with major Tier-1 solar inverter brands in India
Grid Power Factor & Volt-VAR
Active and reactive power coordination at the grid interface for billing compliance:
- Maintains facility Power Factor within penalty-free tariff bands
- Dispatches reactive power compensation to capable inverters
- Avoids contract demand penalties during heavy curtailment
Autonomous Watchdog Protection
Industrial edge safety protection safeguarding against physical communication severance:
- Autonomous generation step-down if meter comms are lost
- Hardwired contactor output for breaker shunt trip interlocking
- Non-volatile event logging stored locally on edge hardware
Plant Integration
Clear Responsibility Boundaries Across Plant Assets
How the Synapse™ Zero-Export RTU interfaces with metering hardware, solar inverters, and backup generators without overlapping physical protection layers.
Measures 3-phase bidirectional Active Power (kW), Reactive Power (kVAr), and frequency at the grid incomer. Compatible with Schneider (EM6400NG, IEM3000), Socomec (Diris A40), Selec (MFM384), Rishabh, and Elmeasure.
Runs the closed-loop control algorithm locally on an industrial ARM processor. Enforces the PCC safety buffer, computes active power throttling commands, and broadcasts Modbus setpoints across multiple RS-485 / Ethernet buses.
Executes dynamic active power ramp-down according to received percentage or absolute power limits. Supports string and central inverters from Sungrow, Huawei, Solis, Growatt, GoodWe, Delta, SMA, and Kehua.
Interfaces with DG controllers (Deep Sea, ComAp, Woodward) to enforce generator loading during outages. Operates an auxiliary contactor output to isolate the solar breaker if communication is interrupted.
Hardware Platform
Modular Compute Tiers: Synapse™ Zero-Export Edge RTU
Industrial DIN-rail mounted controller tiers engineered for commercial rooftops, industrial manufacturing plants, and multi-feeder captive solar installations.
| Hardware Specification | Essential Tier (2 GB RAM) | Performance Tier (4 GB RAM) | Enterprise Dual-Mode (8 GB RAM) |
|---|---|---|---|
| Target Plant Capacity | 50 kWp to 500 kWp Rooftop | 500 kWp to 3 MWp C&I | 3 MWp+ / Multi-Feeder Hybrid |
| Max Managed Inverters | Up to 10 Inverters | Up to 32 Inverters | Up to 64 Inverters (Multi-Bus) |
| Communication Ports | 2× Optically Isolated RS-485, 1× Fast LAN | 4× Optically Isolated RS-485, 2× Gigabit LAN | 6× Optically Isolated RS-485, 2× GbE LAN, 4G LTE |
| Response Execution Cycle | Sub-Second (Bus & Baud Dependent) | Sub-Second (Bus & Baud Dependent) | Deterministic Sub-500ms (Modbus TCP) |
| Supported Operating Modes | Pure Zero Export (Grid Mode) | Zero Export + Dynamic PF Control | Zero Export + DG-PV Sync + BESS EMS |
| Local Data Buffering | 30 Days (Internal eMMC) | 90 Days (High-Endurance Storage) | 180 Days (Industrial NVMe/eMMC) |
| Operating Temperature | -20°C to +70°C DIN-Rail Mount | -25°C to +75°C Industrial IP30 | -40°C to +85°C Ruggedized Enclosure |
Deployment Standards
6-Stage Site Commissioning & SAT Workflow
Standardized engineering procedure to ensure zero export compliance during DISCOM grid inspection and plant handover.
SLD & CT/PT Ratio Audit
Audit single-line diagrams to verify PCC location and confirm bidirectional meter CT/PT secondary scaling.
RS-485 Bus & Baud Setup
Connect isolated RS-485 daisy chains, configure Modbus addresses, and terminate communication lines.
Safety Buffer Calibration
Calibrate baseline import threshold in Synapse software based on facility motor starting characteristics.
Factory Testing (FAT)
Validate closed-loop setpoint dispatch with factory simulation before dispatch to site.
SAT Load Shed Verification
Conduct live load trip tests with plant engineers to verify rapid curtailment without reverse grid export.
Clarity UI™ Handover
Connect to Clarity UI™ for real-time power flow visualization, curtailment logging, and compliance reporting.
Engineering FAQ
Frequently Asked Questions on Zero Export Control & Grid Compliance
Answers regarding DISCOM grid regulations, multi-vendor support, response speed, and backup DG integration.
Why does the zero export controller maintain an import safety cushion at the PCC?
Industrial plants frequently experience sudden load step changes (e.g. large compressor or induction motor shutoffs). If the controller targeted zero import exactly, a sudden 50 kW load drop would momentarily backfeed into the utility grid before inverters could ramp down. Maintaining a calibrated safety import margin absorbs sudden facility load swings, ensuring net power flow stays within safe limits.
What is the response latency and how does communication protocol affect it?
Control response latency is strictly dependent on the underlying communication medium. On standard 2-wire RS-485 Modbus RTU loops, polling meters and broadcasting write commands across 10–30 inverters typically executes in 500 ms to 1 second. On high-speed Modbus TCP / Ethernet topologies, deterministic closed-loop curtailment is achieved in under 500 ms.
Can the controller manage inverters from different manufacturers on the same rooftop plant?
Yes. The Synapse™ Zero-Export RTU includes pre-integrated driver libraries for major Tier-1 inverter manufacturers (Sungrow, Huawei, Solis, Growatt, GoodWe, Delta, Kehua, SMA). It can poll mixed-vendor inverters on dedicated communication channels and dispatch coordinated curtailment across the entire fleet.
What happens if the communication cable to the PCC meter is accidentally disconnected?
The Synapse controller operates a continuous heartbeat monitor. If meter telemetry is interrupted for longer than the configured safety timeout, the controller initiates a fail-safe sequence: it immediately steps down inverter active power to a safe generation level and activates an auxiliary contactor to prevent unmonitored grid backfeeding.
How does the zero-export controller handle transition to Diesel Generator (DG) power?
When grid power fails and on-site diesel generators start, the controller detects the changeover via auxiliary breaker status inputs or DG controller telemetry. It automatically switches to DG-PV Synchronization mode, enforcing Minimum Generator Loading to prevent reverse power flow from damaging the alternator while reducing diesel fuel consumption.
Does the zero-export control loop require an active internet connection to operate?
No. The entire closed-loop control algorithm runs locally on the industrial Synapse™ edge processor. Internet connectivity is only utilized for cloud dashboard visualization on Clarity UI™ and remote alert notifications. Loss of internet does not disrupt local grid protection or throttling execution loops.
